ISO tank container protection doesn’t have to be expensive

Si 14 E is widely regarded as one of the best protective coatings available for ISO tank containers and road tanker barrels. However, top-tier performance often comes with a higher price tag. That’s why we developed an alternative solution that delivers reliable protection, especially in highly alkaline environments, without the premium cost.

ISO tank containers and road tanker barrels endure a hard life. They are routinely exposed to aggressive chemicals, extreme pH levels, and demanding transport conditions. Their internal lining, that thin layer separating the cargo from the steel shell, is what makes it all possible. That’s why a coating failure isn’t just a maintenance issue: it can lead to contamination, downtime, and significant financial loss.

Choosing the right lining is therefore critical. It must balance chemical resistance, durability, and cost effectiveness, all while complying with strict industry standards.

Why high-quality linings cost what they do
High-performance coatings are expensive for a reason. Premium solutions are engineered to withstand harsh chemicals over long periods, reducing the need for frequent inspections, repairs, or relining. In many cases, investing upfront in a top-quality coating translates into lower lifecycle costs. Longer service intervals, reduced risk of failure, and improved operational reliability all contribute to the value of these systems.

For SÄKAPHEN, Si 14 E stands out as a benchmark solution in demanding chemical environments, particularly acids and hydrocarbons. Its heat-curedphenolic technology delivers exceptional chemical resistance and long-term durability, making it a preferred choice for operators who cannot compromise on performance. For applications involving aggressive media and stringent safety requirements, Si 14 E remains one of the most reliable options available.

When a cost-efficient alternative makes sense
That said, not every application requires a premium solution. In some cases, a more economical “fit-for-purpose” coating can deliver excellent results.

This is where SÄKAPHEN HR 60 Extra G (Red) comes into play.

HR 60 Extra G (Red) is a cold-curedepoxy coating developed as a cost-effective alternative for specific applications. It is particularly well-suited for highly alkaline environments, where it provides reliable protection without the higher cost associated with heat-cured phenolic systems. No baking oven is required, and that single fact changes the economics of the entire job: no specialist workshop, no curing energy costs, and the ability to apply on-site. For fleet operators who can’t afford long tank rotations, this is a meaningful advantage.

But cost-efficiency is only part of the story. The chemistry is also worth looking at. HR 60 Extra G (Red) covers a pH range of 1–13, making it effective with both acidic and strongly alkaline media. It’s been verified for resistance to 50% sodium hydroxide (NaOH) and 14% sodium hypochlorite (NaOCl), two of the most commonly transported alkaline chemicals in the water treatment and chemical distribution industries. It also handles hydrochloric acid, fuels, inorganic salts, and all water types.

The lining builds to 400–500 µm dry film thickness, delivering a robust barrier without the need for heat polymerization. Temperature resistance runs from –20°C to +120°C dry and up to +70°C in wet contact, well within the parameters of most alkaline cargo applications. Like Si 14 E, the surface is hard-elastic and highly hydrophobic, resisting fouling and incrustation.

Real-world durability data backs this up: HR 60 Extra G (Red) was exposed to outdoor conditions near Abqaiq, Saudi Arabia, for 18 months, with temperatures reaching 55°C, sandstorms, and salty air. Hardness and impact strength were unaffected. For tanks stored outdoors between jobs, that level of UV and weather resistance matters.

In other words, SÄKAPHEN HR 60 Extra G (Red) offers a practical balance between performance and cost, making it an attractive option for operators seeking to optimize their coating strategy without over-engineering the solution.

A tailored solution

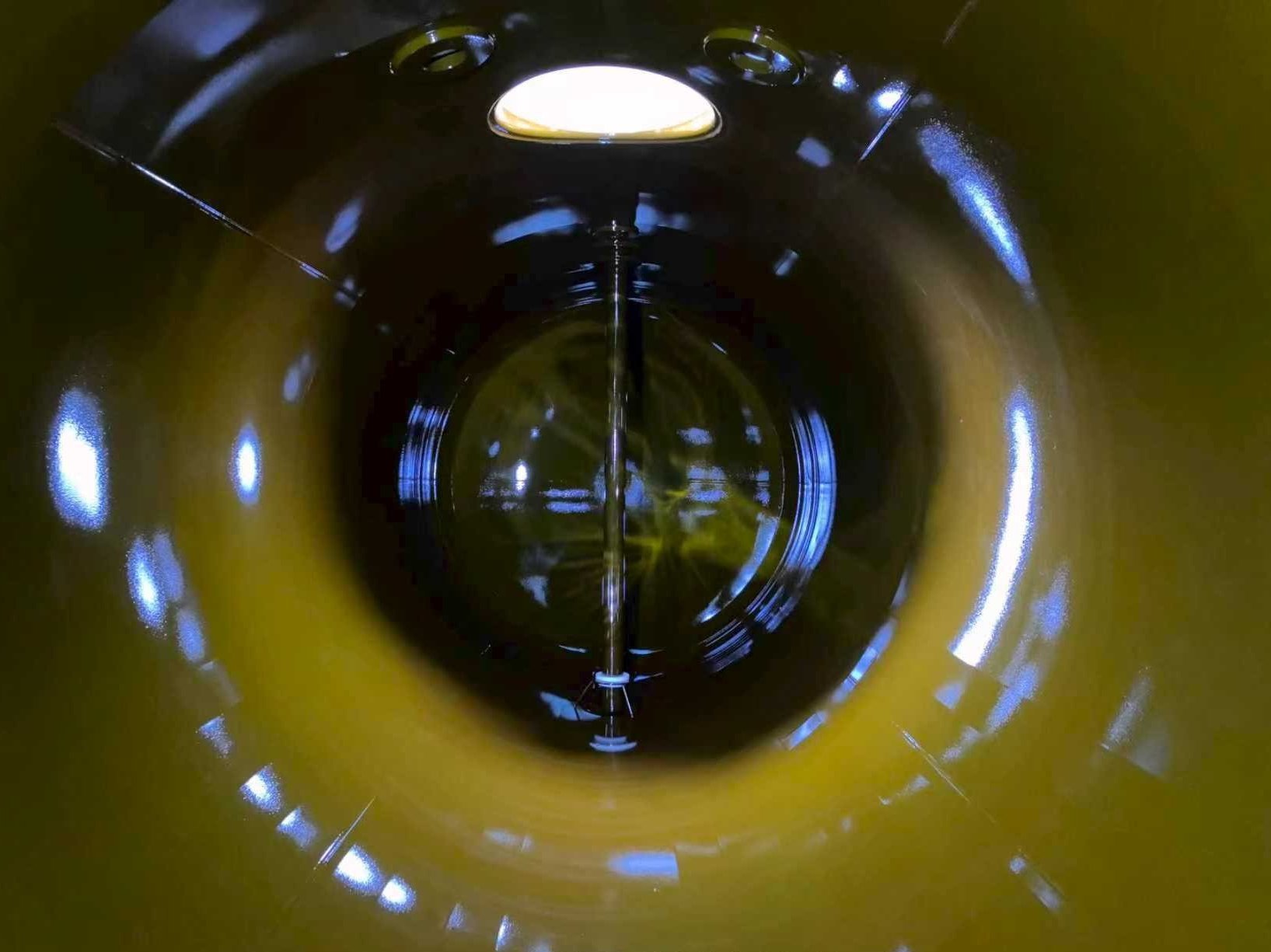

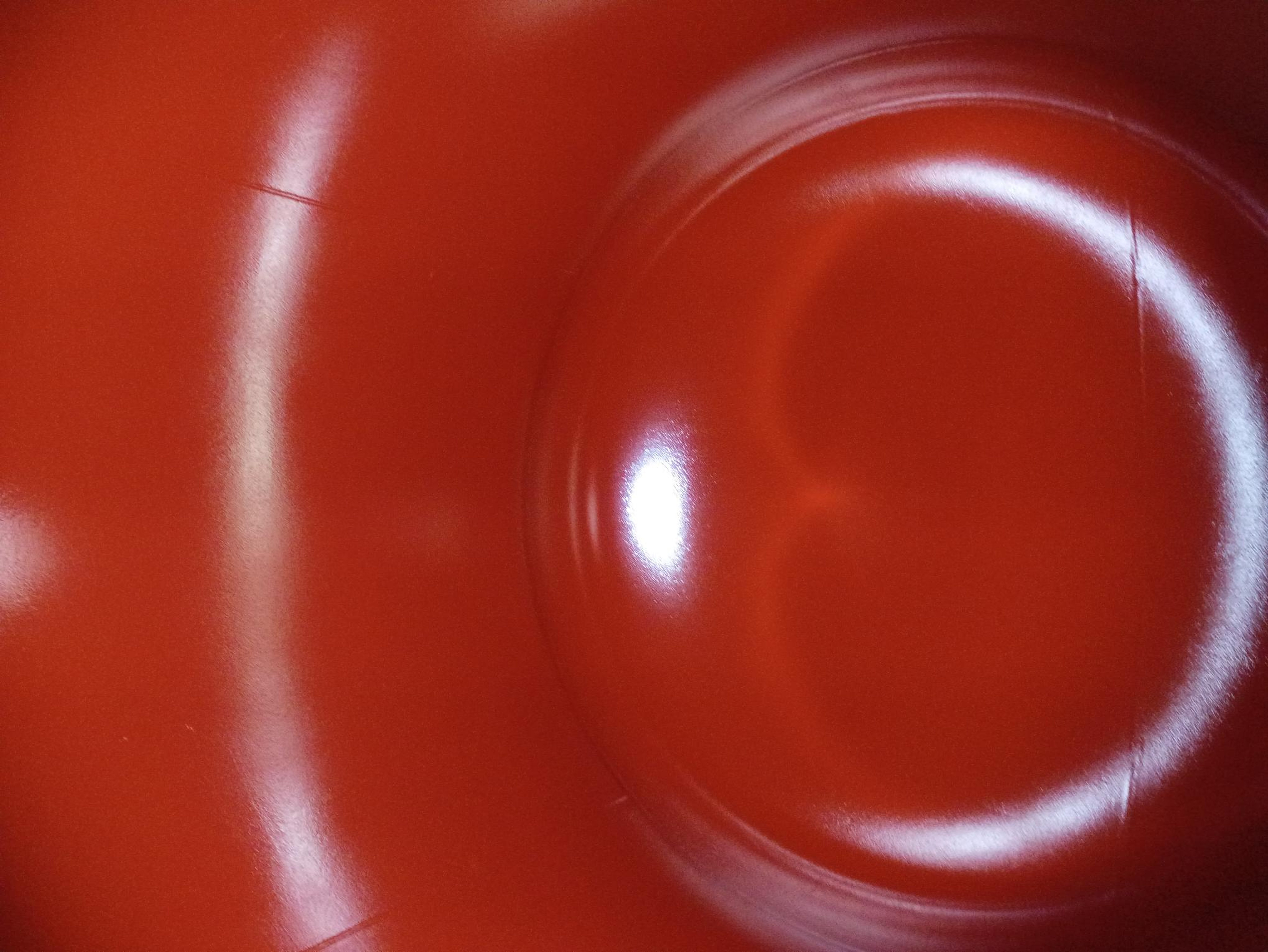

Protecting ISO tank containers doesn’t always have to come at a premium. While high-end solutions remain essential for the most demanding environments, alternatives such as HR 60 Extra G (Red) show that reliable, cost-effective protection is achievable. We can handle the application process directly or through our global network of authorized applicators – such as Gartner Coatings, whose highly qualified staff treated the tank in the pictures. For tailored lining recommendations for your specific cargo and operating conditions, contact the SÄKAPHEN technical team.

FAQ
1. When should I choose a heat-cured phenolic lining over a cold-cured epoxy?
Choose a heat-cured phenolic like SÄKAPHEN Si 14 E for highly aggressive chemicals, such as strong acids or hydrocarbons, and when maximum service life is required.

2. When is HR 60 Extra G (Red) the right choice?
SÄKAPHEN HR 60 Extra G (Red) is ideal for cost-sensitive applications, especially in highly alkaline environments like sodium hydroxide or sodium hypochlorite service.

3. What are the main operational advantages of a cold-cured lining?
Although, of course, still requiring a skilled applicator and the performance of all necessary surface preparation, coating, and quality control phases, cold-cured linings can be applied on-site without heat curing, thus reducing downtime and logistics. Finally, any repair work can be done directly using the same product.
